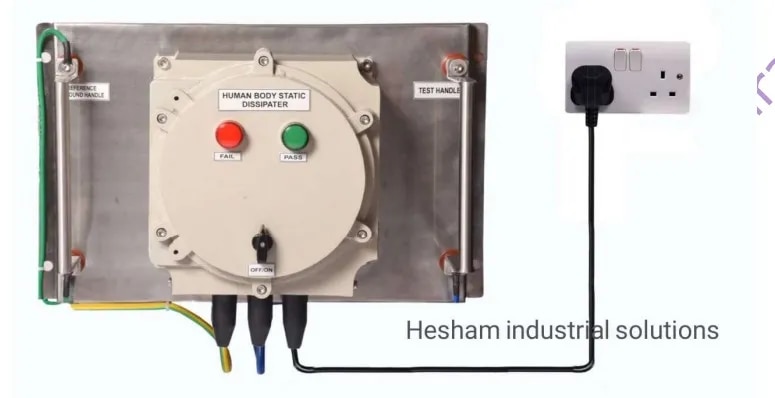

HUMAN BODY STATIC DISSIPATER(HIS-HBSD-02)

TECHNICAL SPECIFICATION

Model No. : HIS-HB

Type : Micro

Principle : Human

measuring the Resistance of human body and providing

conductive for static charge dissipation to earth

Display Range : 0 to 1 MEGA

Relay O/p : Two C/o (Potential Free Contacts)

Control action : Relay will get energized when the body resistance is below

1 megaohm the device display ‘PASS’

When the Resistance above 1 mega ohm, the device display’s

‘‘open 'relay will get de-energized’

Power supply : 110 V / 230 V AC, 50

H2 Protection : Enternal Fuses

Execution : Explosion - Proof Ex ‘d’

Dimension : 250 x 250 x 140

mm IP Protection : IP65

Mounting : Wall Mounting SS Plate

Handle : Test Handle & Reference Ground Handle / power on/off Switch : 16 AMP

Apperatus Standard : Ex ‘d’ - 15/IEC 60079-

1:2014 Temperature Class : T6 (85 deg. C)

Area Classification : Zone 182

Gas Groups : IIA / IIB, IIC & T6

Cable Enteries : One bottom of Enclosure 3/4" ET
